Manual & Safety

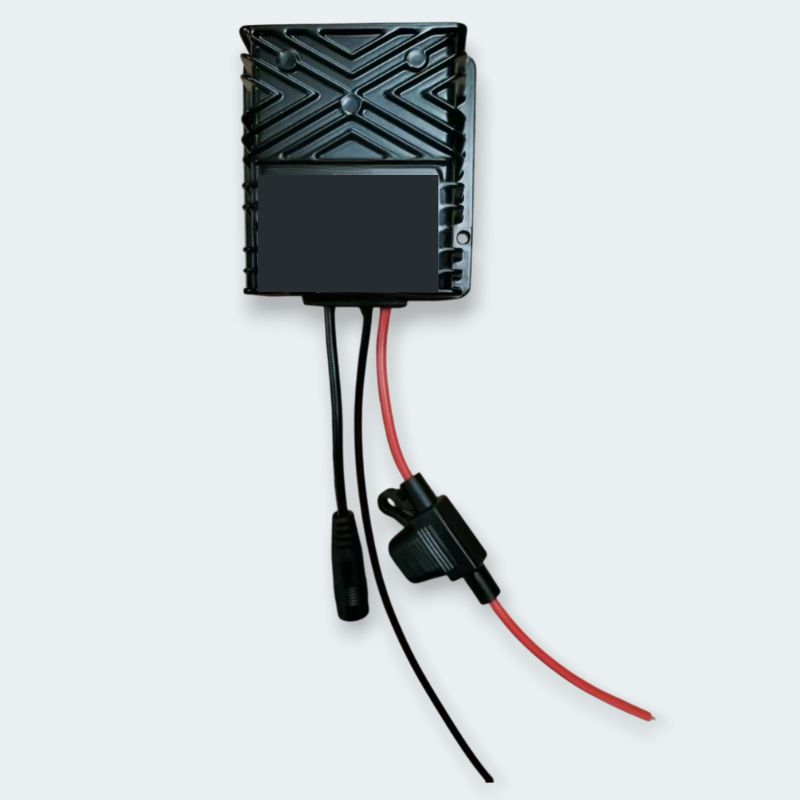

12V/24V DC to 48V DC Converter with socket compatible with Starlink Mini

Model LG-DCDC-12V48V-(BPW/BS)


⚠ WARNINGS & Safety Information

  • Before using the device, carefully read this manual.
  • Keep this manual either downloaded or printed in a safe place for later use. It contains important information.
  • Caution! Improper use may lead to injury or damage.
  • Keep the product out of reach of children.
  • Use the product only for its intended purpose.
  • Inspect the product for damage before each use. Do not use it if any parts are damaged or defective.
  • Store the product in a dry, safe place away from direct sunlight or extreme temperatures.
  • Connect the device only to a suitable power source and unplug it when not in use.
  • Avoid placing any objects that could short-circuit the input power cables.
  • Securely connect the cables to the device. Compatible cable connectors and matching crimping pliers must be used.
  • Securely mount the device on a stable, level surface to prevent it from falling.
  • Do not cover or obstruct the device to allow for proper heat dissipation.
  • The device should not be opened or repaired by unauthorized personnel.
  • Do not exceed the total power supported by the device.
  • Never connect the device to 230/110/mains voltage! This is extremely dangerous.
  • Disconnect the USB-C side before connecting the wires to a terminal. Do not connect under load or while the input power is on.
  • Proper pre-fusing is required. If unsure, please consult a low-voltage professional.

Technical Specification

Input voltage 12V/24V (10-40V)
Output voltage/current/power 48V DC 2A 96W max
Efficiency >93%
Connector Input: bare wires  + Positive: Red      - Negative: Black
Output: Barrel Jack Socket (fits Starlink Mini cable)
Isolation In- and output is not isolated
Protections Overvoltage, Overcurrent, Overtemperature
Cable length Input: approx. 13 cm
Output: approx. 5 cm
Ripple (full load) ~200 mV
No load current 20 mA
Rating IP67
Operating temperature -30 to +70 °C
Additional cooling recommended above 40°C
Operating humidity 10 – 90% (non condensing)
Storage temperature -40 to +70 °C
Safety Standard Compliance CE, RoHS compliant
Compliance

rohs_compliance.png ce-mark-c50.png

Additional (compliance) labels for your region may be found on the packaging or the device itself.

Disposal

This appliance complies with the European Union's WEEE directive (2012/19/EU) on responsible end-of-life handling.

  • Packaging: Eco-friendly materials make it easy to recycle. Send that cardboard on its next adventure or recycle it accordingly.
  • Waste equipment: Don't let it gather dust! Your local retailer or recycling center gladly welcomes it back for reuse or responsible recycling. Ask them for the latest disposal routes, and watch your old appliance become something new!

Installation - Important Information!

This device is delivered with a 10A fuse which is the calculated max power necessary for a 12V system. If you intend to use this device on a power source with a different voltage, please make sure to calculate and change the fuse to the necessary value. Please always consult a low-voltage electronics professional.

If you have any issues, please contact our support team.

We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with Starlink, SpaceX, or any of its subsidiaries or affiliates.

Manufactured by performeon GmbH, Rodgasse 5, 97828 Marktheidenfeld, Deutschland
support@linkgear.net ● +49 (0) 9391 6099 880
