Manual & Safety

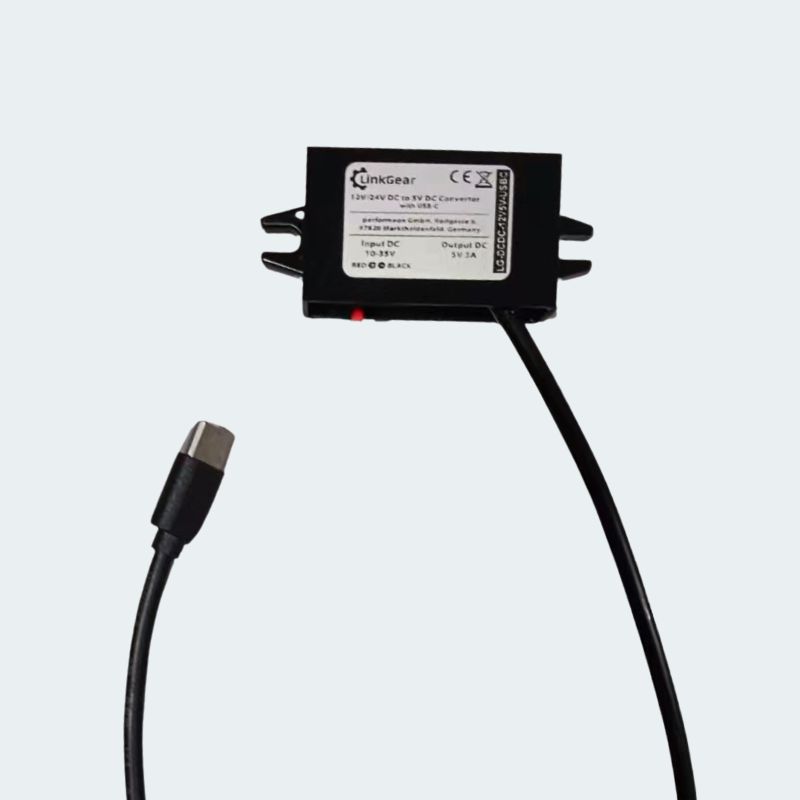

12V/24V DC to 5V DC Converter with USB Type-C Plug
Model LG-DCDC-12V5V-USBC
⚠ WARNINGS & Safety Information
- Before using the device, carefully read this manual.
- Keep this manual either downloaded or printed in a safe place for later use. It contains important information.
- Caution! Improper use may lead to injury or damage.
- Keep the product out of reach of children.
- Use the product only for its intended purpose.
- Inspect the product for damage before each use. Do not use it if any parts are damaged or defective.
- Store the product in a dry, safe place away from direct sunlight or extreme temperatures.
- Connect the device only to a suitable power source and unplug it when not in use.
- Avoid placing any objects that could short-circuit the input power cables.
- Securely connect the cables to the connection point. Compatible cable connectors and matching crimping pliers must be used.
- Securely mount the device on a stable, level surface to prevent it from falling.
- Do not cover or obstruct the device to allow for proper heat dissipation.
- The device should not be opened or repaired by unauthorized personnel.
- Do not exceed the total power supported by the device.
- Never connect the device to 230/110/mains voltage! This is extremely dangerous.
- Disconnect the USB-C side before connecting the wires to a terminal. Do not connect under load or while the input power is on.
- Proper pre-fusing is mandatory. If you are unsure about the correct fuse rating or installation, consult a qualified low-voltage professional.
- All cables connected to this device must be properly strain-relieved to prevent mechanical stress and damage to the device or its connections.
- Failure to follow these installation requirements may result in serious equipment damage, electrical fires, serious injury, or death.
Technical Specification
| Nominal Voltage | 12V/24V |
| Input voltage/current | 9-35V DC, 2A |
| Output voltage/current/power | 5V DC 3.5A 18W max |
| Ports |
Input Cable ~14cm + Positive: Red - Negative: Black Output USB Type-C ~33cm |
| IP Rating |
IP67 |
| Efficiency | >93% |
| Ripple | 60 mV |
| Compatible Standards |
APPLE: 5V 2.4A |
| Protections | Overvoltage, Overcurrent, Wrong polarity, Overheat, Short-circuit |
| Operating temperature | -20 to +55 °C |
| Operating humidity | 10 – 90% (non condensing) |
| Storage temperature | -30 to +85 °C |
| Safety Standard Compliance | CE, RoHS compliant |

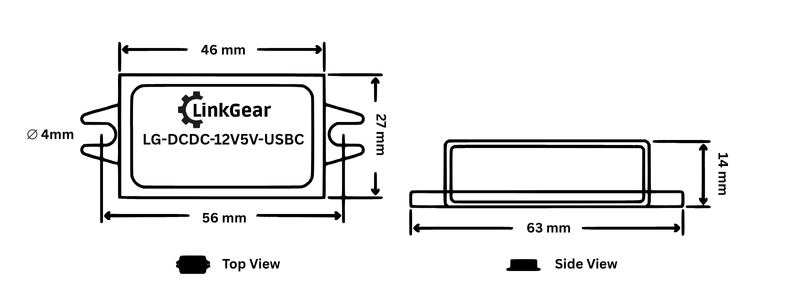

Dimensions
Compliance
Additional (compliance) labels for your region may be found on the packaging or the device itself.
Disposal
This appliance complies with the European Union's WEEE directive (2012/19/EU) on responsible end-of-life handling.
- Packaging: Eco-friendly materials make it easy to recycle. Send that cardboard on its next adventure or recycle it accordingly.
- Waste equipment: Don't let it gather dust! Your local retailer or recycling center gladly welcomes it back for reuse or responsible recycling. Ask them for the latest disposal routes, and watch your old appliance become something new!
Installation - Important Information!
Proper installation of this device is essential for safe and reliable operation.
The positive supply line must be properly pre-fused using a fuse appropriate for the device, supply voltage, cable size, and expected current. The fuse should be installed as close as practical to the power source to protect the wiring in the event of a short circuit or fault.
All power and network cables connected to the device must be properly secured and strain-relieved. Cables must not place mechanical stress on the device, connectors, or terminals. Failure to provide adequate strain relief may damage the device or its connections and may create an unsafe operating condition.
Ensure that all electrical connections are properly sized, securely fastened, and suitable for the expected voltage and current. Do not operate the device with loose, damaged, or undersized wiring.
If you are unsure about the correct fuse rating, cable sizing, wiring, or installation, consult a qualified low-voltage electronics professional before operating the device.
If you have any issues, please contact our support team.
performeon GmbH, Rodgasse 5, 97828 Marktheidenfeld, Deutschland
support@linkgear.net ● +49 (0) 9391 6099 880
